Subcategories

  • Female / female
    Female / female

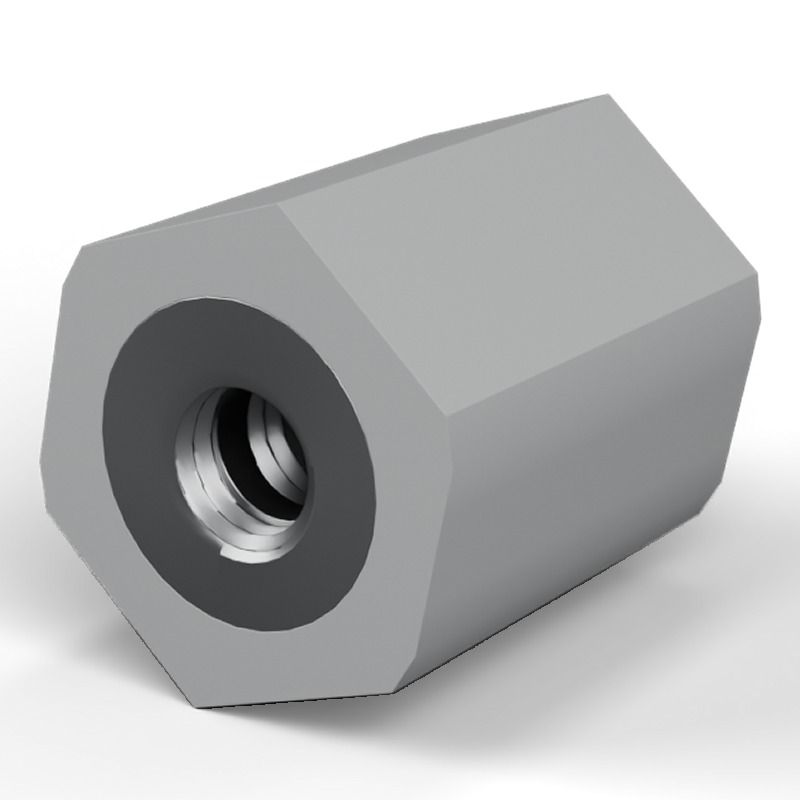

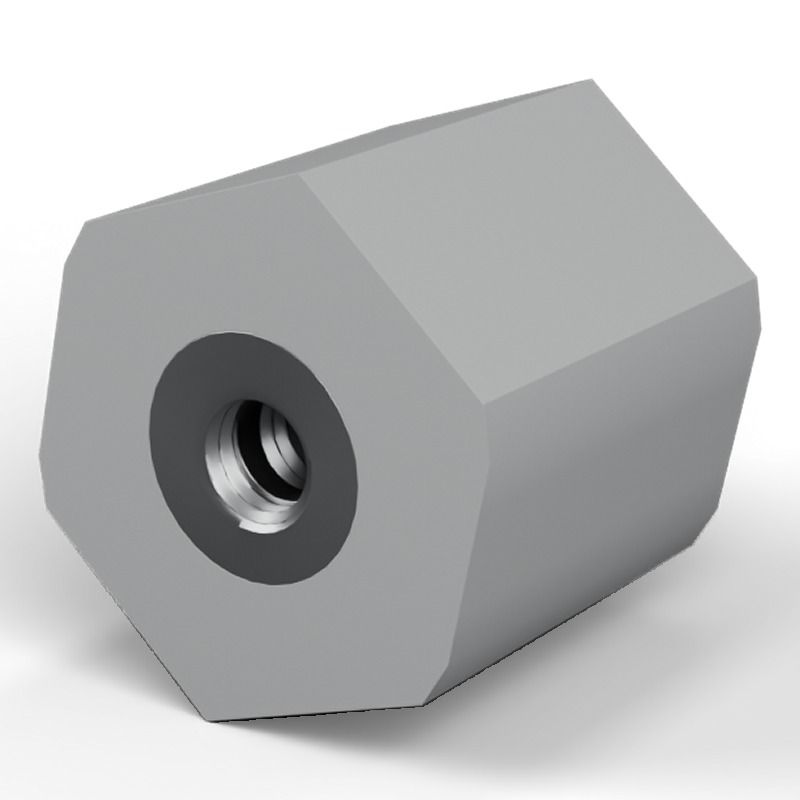

    Female / female spacers: a tapped hole at each end, to join two parts with two screws. Threads M2 to M8 and UNC 4-40 and 6-32, in zinc-plated or nickel-plated steel, stainless steel, nickel-plated brass, aluminium or plastic, hexagonal or round.

    The dimensioned drawing of each length shows whether the thread goes through or is blind, and its depth: your screw must not be longer.

  • Male / female
    Male / female

    Male / female spacers: a threaded stud on one side, a tapped hole on the other, to stack boards or fix a part without an extra screw. Threads M2 to M10 and UNC 4-40 and 6-32, in zinc-plated or nickel-plated steel, stainless steel, nickel-plated brass, aluminium or plastic.

    The stated length is the body length, stud not included; the stud length is chosen next to the body length and is shown on the dimensioned drawing of each variant.

  • Self-tapping
    Self-tapping

    Self-tapping spacers in zinc-plated steel: a stud that cuts its own thread when fitted, a tapped hole on the other side. Threads M2.5, M3 and M4, each length with its dimensioned drawing.

  • Male / male
    Male / male

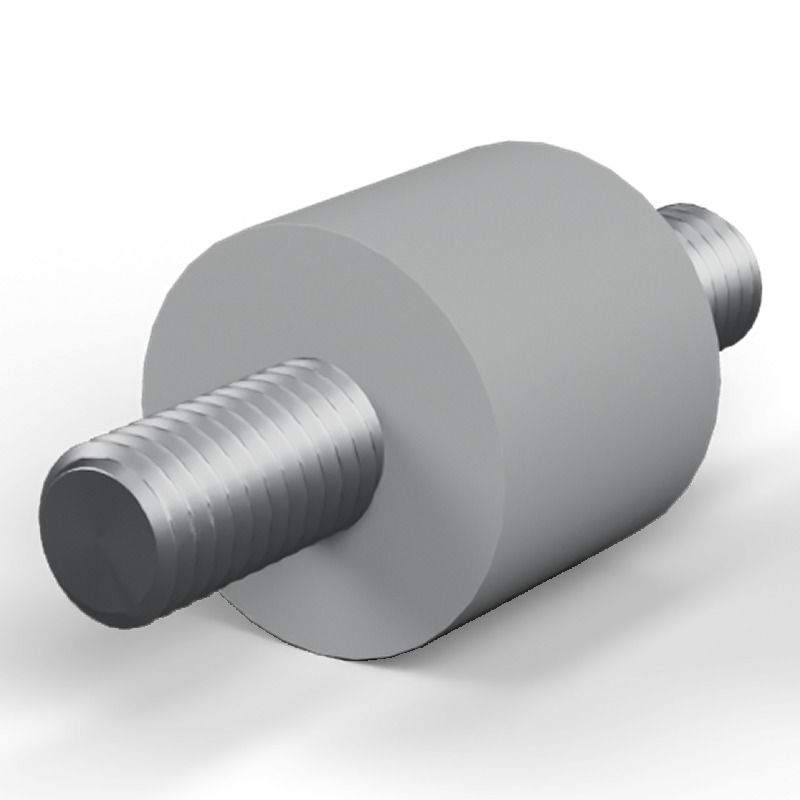

    Male / male spacers: a threaded stud at each end, to join two tapped parts or pass through a panel. Threads M2.5 to M8 and UNC 4-40, in zinc-plated or nickel-plated steel, stainless steel, nickel-plated brass or plastic.

    The stated length is the body length; the two identical studs are dimensioned on the drawing of each reference.

There are 300 products.
