Hexagonal insulated standoff male/female PA6.6 plastic, brass insert, M4 - 8.4 mm across flats
€410.80 tax excl.
€410.80
Tax included
Its M4 stud screws into a tapped part or into another spacer; the next part is fixed by a M4 screw in its tapped end.
Plastic with moulded metal inserts: it electrically insulates the two fastenings.
Secure paymentCard, transfer, PayPal
Delivery5 to 10 days
Shipping 22.00 € excl. VATFree from 400 € excl. VAT

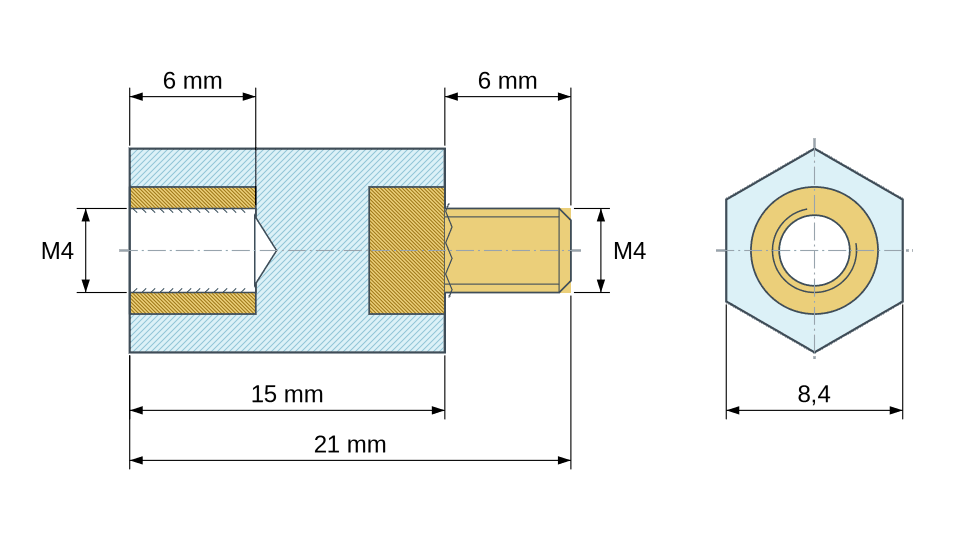

Insulated standoff in PA6.6 plastic with one M4 tapped insert (6 mm deep) and one M4 threaded stud, 6 mm long in brass, moulded into the part. Flammability class UL94-HB.
PlasticBrass
Specifications
| Reference | P66-MF-M4-SW8.4-L15-100 |
|---|---|
| Type | Male-female |
| Material | Plastic PA6.6, brass insert |
| Thread | M4 |
| Across flats | 8.4 mm |
| Body length | 15 mm |
| Stud length | 6 mm |
| Tapping | depth 6 mm |
Insulated standoff in PA6.6 plastic with one M4 tapped insert (6 mm deep) and one M4 threaded stud, 6 mm long in brass, moulded into the part. Flammability class UL94-HB.
