Hexagonal insulated standoff male/female PA6.6 plastic, brass insert, M5 - 10 mm across flats
333,90 €
excl. VAT
Its M5 stud screws into a tapped part or into another spacer; the next part is fixed by a M5 screw in its tapped end.
Plastic with moulded metal inserts: it electrically insulates the two fastenings.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT

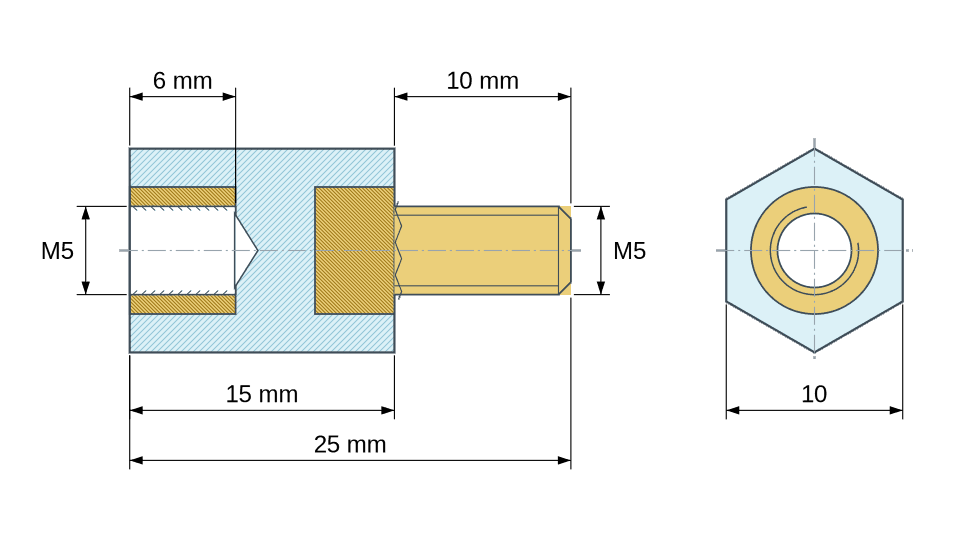

Insulated standoff in PA6.6 plastic with one M5 tapped insert (6 mm deep) and one M5 threaded stud, 10 mm long in brass, moulded into the part. Flammability class UL94-V2.
PlasticPA6.6Brass
Specifications
| Reference | P66-MF-M5-SW10-L15-T10-100 |
|---|---|
| Type | Male-female |
| Material | Plastic PA6.6, brass insert |
| Thread | M5 |
| Across flats | 10 mm |
| Body length | 15 mm |
| Stud length | 10 mm |
| Tapping | depth 6 mm |
Insulated standoff in PA6.6 plastic with one M5 tapped insert (6 mm deep) and one M5 threaded stud, 10 mm long in brass, moulded into the part. Flammability class UL94-V2.
