Hexagonal insulated standoff male/female polystyrene plastic, steel insert, M4 - 9 mm across flats
177,00 €
excl. VAT
Its M4 stud screws into a tapped part or into another spacer; the next part is fixed by a M4 screw in its tapped end.
Plastic with moulded metal inserts: it electrically insulates the two fastenings.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT

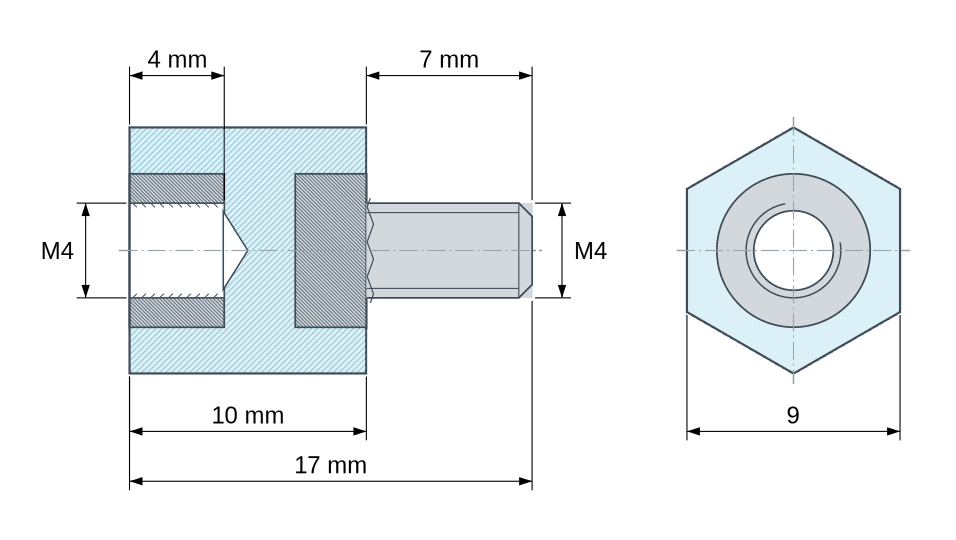

Insulated standoff in polystyrene plastic with one M4 tapped insert (4 mm deep) and one M4 threaded stud, 7 mm long in steel, moulded into the part.
Insulated standoff in polystyrene plastic with one M4 tapped insert (4 / 7 mm deep) and one M4 threaded stud, 7 mm long in steel, moulded into the part. Flammability class UL94-HB.
PlasticpolystyreneSteel
Specifications
| Reference | PST-MF-M4-SW9-L10-T7-100 |
|---|---|
| Type | Male-female |
| Material | Plastic polystyrene, steel insert |
| Fire rating | UL94-HB |
| Thread | M4 |
| Across flats | 9 mm |
| Body length | 10 mm |
| Stud length | 7 mm |
| Tapping | depth 4 mm |
Insulated standoff in polystyrene plastic with one M4 tapped insert (4 mm deep) and one M4 threaded stud, 7 mm long in steel, moulded into the part. Flammability class UL94-HB.
