Round insulated standoff male/female PA6.6 plastic, brass insert, M3 - Ø6.5 mm
€311.60 tax excl.
€311.60
Tax included
Its M3 stud screws into a tapped part or into another spacer; the next part is fixed by a M3 screw in its tapped end.
Plastic with moulded metal inserts: it electrically insulates the two fastenings.
Secure paymentCard, transfer, PayPal
Delivery5 to 10 days
Shipping 22.00 € excl. VATFree from 400 € excl. VAT

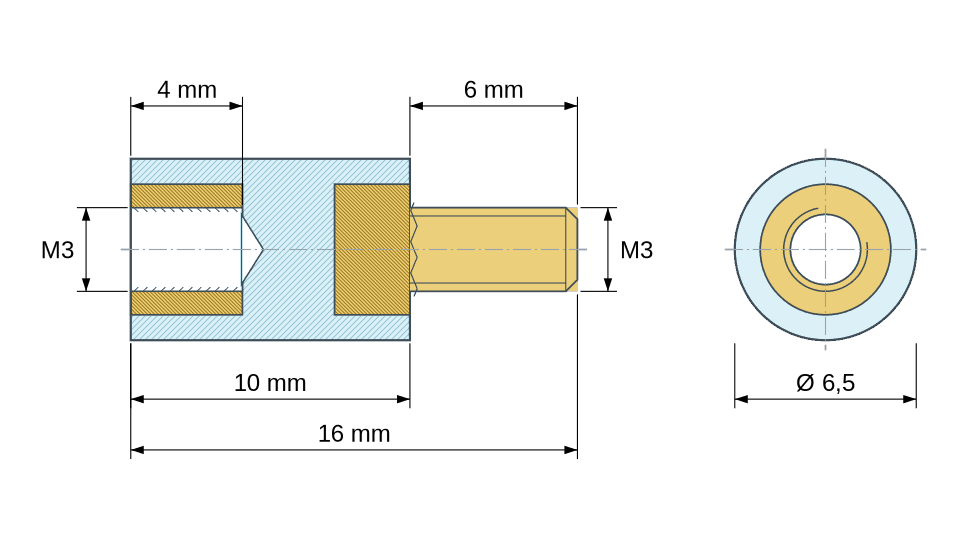

Insulated standoff in PA6.6 plastic with one M3 tapped insert (4 mm deep) and one M3 threaded stud, 6 mm long in brass, moulded into the part. Flammability class UL94-HB.
PlasticBrass
Specifications
| Reference | P66-MF-M3-D6.5-L10-100 |
|---|---|
| Type | Male-female |
| Material | Plastic PA6.6, brass insert |
| Thread | M3 |
| Outer Ø | 6.5 mm |
| Body length | 10 mm |
| Stud length | 6 mm |
| Tapping | depth 4 mm |
Insulated standoff in PA6.6 plastic with one M3 tapped insert (4 mm deep) and one M3 threaded stud, 6 mm long in brass, moulded into the part. Flammability class UL94-HB.
