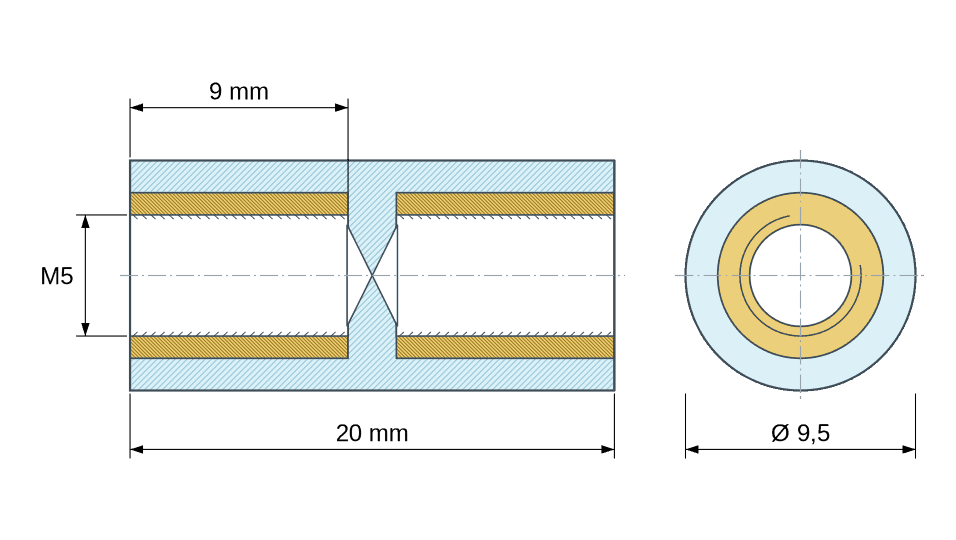

Round insulated standoff female/female PA6.6 plastic, brass insert, M5 - Ø9.5 mm
187,60 €
excl. VAT
Two M5 screws tighten into its ends to hold two parts apart, for instance a circuit board on its mounting.
Plastic with moulded metal inserts: it electrically insulates the two fastenings.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT
Insulated standoff in PA6.6 plastic with two M5 tapped inserts (9 mm deep) in brass, moulded into the part.
Insulated standoff in PA6.6 plastic with two M5 tapped inserts (9 / 10 mm deep) in brass, moulded into the part. Flammability class UL94-HB.
PlasticPA6.6Brass
Specifications
| Reference | P66-FF-M5-D9.5-L20-100 |
|---|---|
| Type | Female-female |
| Material | Plastic PA6.6, brass insert |
| Fire rating | UL94-HB |
| Thread | M5 |
| Outer Ø | 9.5 mm |
| Length | 20 mm |
| Tapping | depth 9 mm |
Insulated standoff in PA6.6 plastic with two M5 tapped inserts (9 mm deep) in brass, moulded into the part. Flammability class UL94-HB.
