Round insulated standoff male/female PA6.6 plastic, brass insert, M5 - Ø9.5 mm
208,80 €
excl. VAT
Its M5 stud screws into a tapped part or into another spacer; the next part is fixed by a M5 screw in its tapped end.
Plastic with moulded metal inserts: it electrically insulates the two fastenings.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT

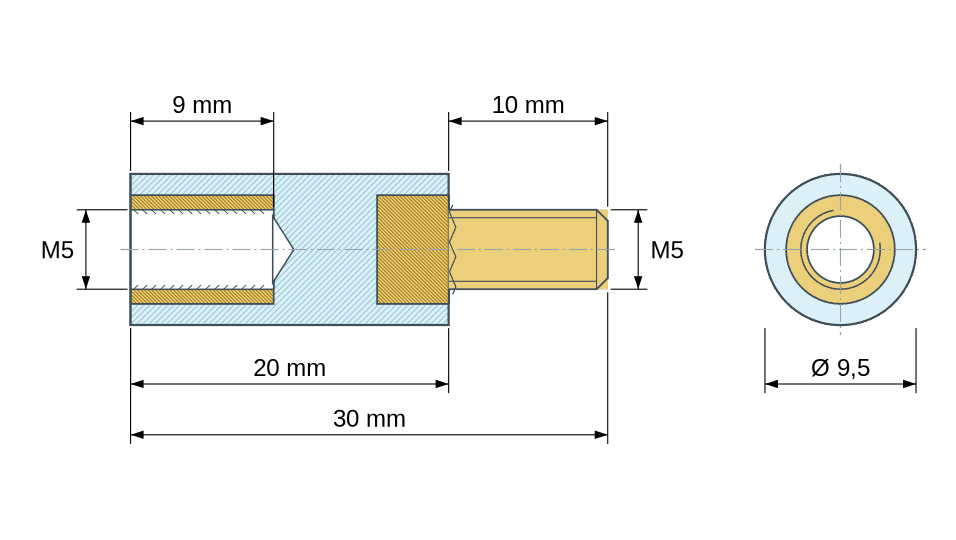

Insulated standoff in PA6.6 plastic with one M5 tapped insert (10 mm deep) and one M5 threaded stud, 6 mm long in brass, moulded into the part.
Insulated standoff in PA6.6 plastic with one M5 tapped insert (9 / 10 mm deep) and one M5 threaded stud, 6 / 10 mm long in brass, moulded into the part. Flammability class UL94-HB.
PlasticPA6.6Brass
Specifications
| Reference | P66-MF-M5-D9.5-L20-T10-100 |
|---|---|
| Type | Male-female |
| Material | Plastic PA6.6, brass insert |
| Fire rating | UL94-HB |
| Thread | M5 |
| Outer Ø | 9.5 mm |
| Body length | 20 mm |
| Stud length | 10 mm |
| Tapping | depth 9 mm |
Insulated standoff in PA6.6 plastic with one M5 tapped insert (10 mm deep) and one M5 threaded stud, 6 mm long in brass, moulded into the part. Flammability class UL94-HB.
