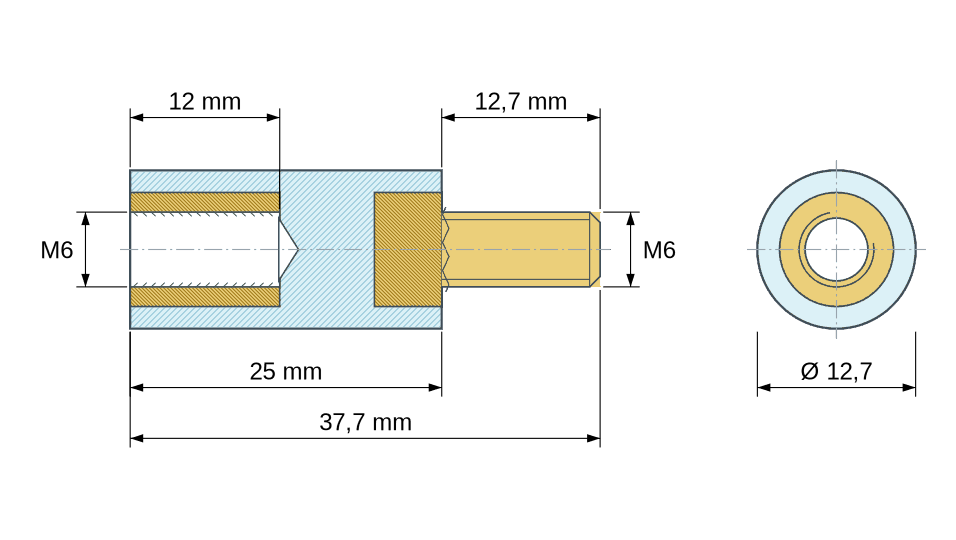

Round insulated standoff male/female PA6.6 plastic, brass insert, M6 - Ø12.7 mm
€470.80 tax excl.
€470.80
Tax included
Its M6 stud screws into a tapped part or into another spacer; the next part is fixed by a M6 screw in its tapped end.
Plastic with moulded metal inserts: it electrically insulates the two fastenings.
Secure paymentCard, transfer, PayPal
Delivery5 to 10 days
Shipping 22.00 € excl. VATFree from 400 € excl. VAT
Insulated standoff in PA6.6 plastic with one M6 tapped insert (12 mm deep) and one M6 threaded stud, 12.7 mm long in brass, moulded into the part. Flammability class UL94-HB.
PlasticBrass
Specifications
| Reference | P66-MF-M6-D12.7-L25-100 |
|---|---|
| Type | Male-female |
| Material | Plastic PA6.6, brass insert |
| Thread | M6 |
| Outer Ø | 12.7 mm |
| Body length | 25 mm |
| Stud length | 12.7 mm |
| Tapping | depth 12 mm |
Insulated standoff in PA6.6 plastic with one M6 tapped insert (12 mm deep) and one M6 threaded stud, 12.7 mm long in brass, moulded into the part. Flammability class UL94-HB.
