Hexagonal insulated standoff male/female polyester plastic, steel insert, M6 - 21 mm across flats
246,00 €
excl. VAT
Its M6 stud screws into a tapped part or into another spacer; the next part is fixed by a M6 screw in its tapped end.
Plastic with moulded metal inserts: it electrically insulates the two fastenings.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT

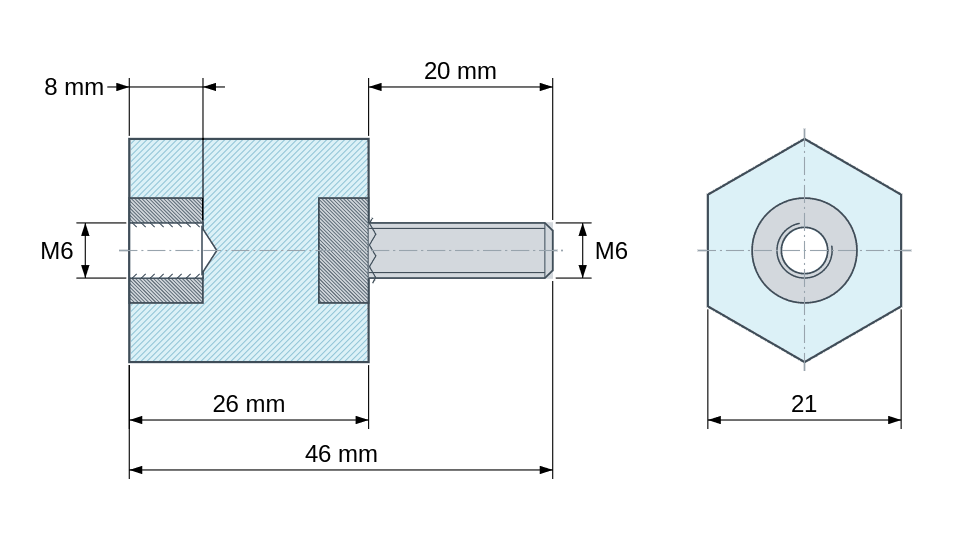

Insulated standoff in polyester plastic with one M6 tapped insert (8 mm deep) and one M6 threaded stud, 20 mm long in steel, moulded into the part.
PlasticSteel
Specifications
| Reference | PES-MF-M6-SW21-L26-T20-10 |
|---|---|
| Type | Male-female |
| Material | Plastic polyester, steel insert |
| Thread | M6 |
| Across flats | 21 mm |
| Body length | 26 mm |
| Stud length | 20 mm |
| Tapping | depth 8 mm |
Insulated standoff in polyester plastic with one M6 tapped insert (8 mm deep) and one M6 threaded stud, 20 mm long in steel, moulded into the part.
