Double-snap PCB support, PA6.6 natural, UL94-V2, PCB hole Ø4.8 mm, PCB thickness 0.8–2 mm
737,50 €
excl. VAT
Natural PA6.6 polyamide PCB support, UL94-V2 fire rating. It snaps into the PCB on one side and the chassis (or a second PCB) on the other: screwless, tool-free hand installation. Release the PCB by pinching the locking tabs.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT
Natural PA6.6 polyamide PCB support, UL94-V2 fire rating. It snaps into the PCB on one side and the chassis (or a second PCB) on the other: screwless, tool-free hand installation. Release the PCB by pinching the locking tabs.

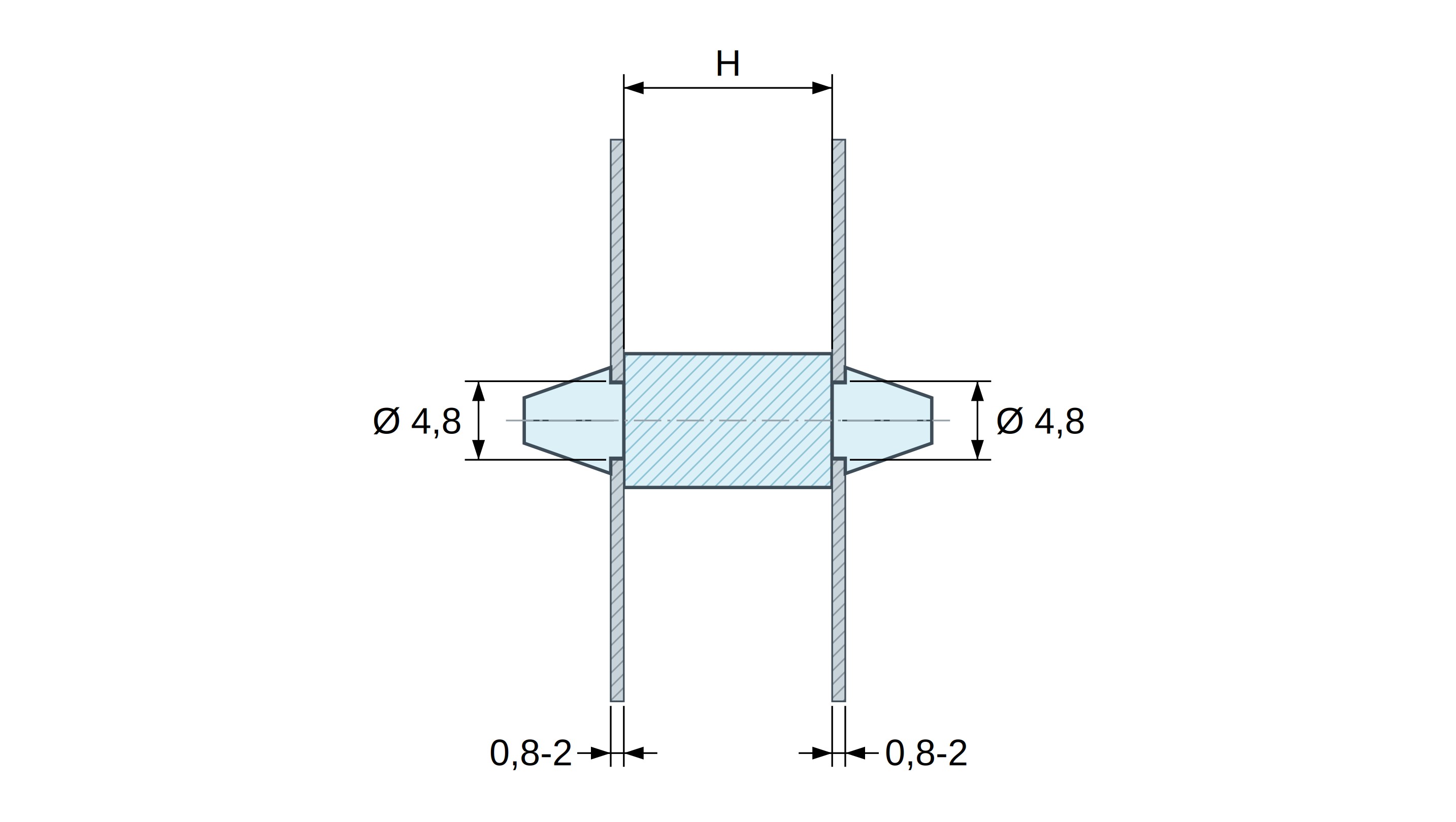

Drawing: H = height of the selected variant (from 4.8 to 22.2 mm).
Specifications
| Reference | SC-F031-4.8-1000 |
|---|---|
| Type | Double-snap PCB support |
| Material | PA6.6 polyamide, natural |
| Fire rating | UL94-V2 |
| PCB hole | Ø 4.8 mm |
| PCB thickness | 0.8–2 mm |
| Chassis hole | Ø 4.8 mm |
| Chassis thickness | 0.8–2 mm |
| Available heights | 4.8 · 6.4 · 9.5 · 12.7 · 14.3 · 15.9 · 22.2 mm |
Natural PA6.6 polyamide PCB support, UL94-V2 fire rating. It snaps into the PCB on one side and the chassis (or a second PCB) on the other: screwless, tool-free hand installation. Release the PCB by pinching the locking tabs.
