Snap-in circuit-board support with M4 thread, natural PA6.6 polyamide UL94-V2, Ø2.5 mm board hole, 1.6 mm board
812,50 €
excl. VAT
natural PA6.6 polyamide circuit-board support, UL94-V2 fire rating. It snaps into the board on one side; on the other, its threaded stud passes through the chassis and is secured with a nut. The board can be fitted without tools onto an already mounted support.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT
natural PA6.6 polyamide circuit-board support, UL94-V2 fire rating. It snaps into the board on one side; on the other, its threaded stud passes through the chassis and is secured with a nut. The board can be fitted without tools onto an already mounted support.

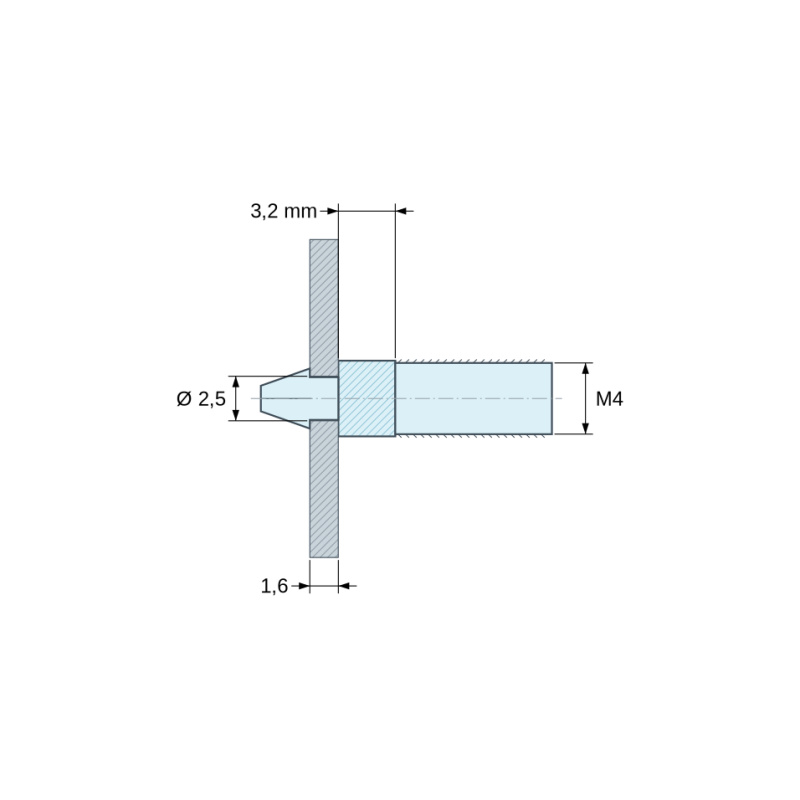

Drawing: H = height of the selected variant (from 3.2 to 15.9 mm).
Specifications
| Reference | SC-F072-3.2-1000 |
|---|---|
| Type | Snap-in circuit-board support |
| Material | PA6.6 polyamide, natural |
| Fire rating | UL94-V2 |
| Board hole | Ø 2.5 mm |
| Board thickness | 1.6 mm |
| Thread | M4 |
| Available heights | 3.2 · 4.8 · 15.9 mm |
natural PA6.6 polyamide circuit-board support, UL94-V2 fire rating. It snaps into the board on one side; on the other, its threaded stud passes through the chassis and is secured with a nut. The board can be fitted without tools onto an already mounted support.
