Double-snap PCB support, PA6.6 polyamide, natural, UL94-V2, PCB Ø4/2 mm / CH Ø4.8/0.5–2.3 mm
83,20 €
excl. VAT
Natural PA6.6 polyamide PCB support, UL94-V2 fire rating. It snaps into the PCB on one side and the chassis (or a second PCB) on the other: screwless, tool-free hand installation. Release the PCB by pinching the locking tabs.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT
Natural PA6.6 polyamide PCB support, UL94-V2 fire rating. It snaps into the PCB on one side and the chassis (or a second PCB) on the other: screwless, tool-free hand installation. Release the PCB by pinching the locking tabs.

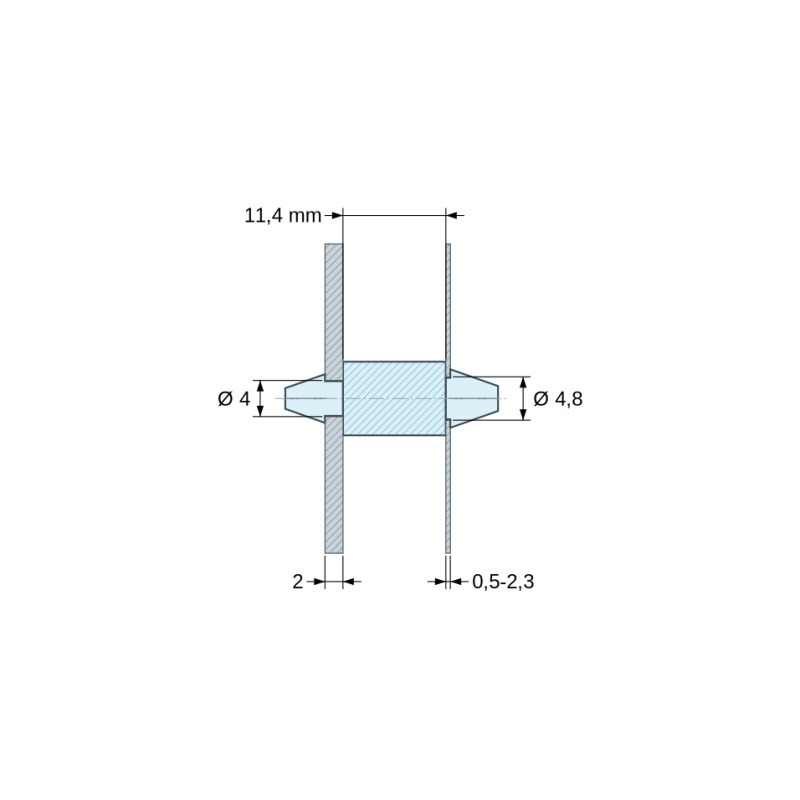

Drawing: height 11.4 mm.
Specifications
| Reference | SC-F058-11.4-100 |
|---|---|
| Type | Double-snap PCB support |
| Material | PA6.6 polyamide, natural |
| Fire rating | UL94-V2 |
| PCB hole | Ø 4 mm |
| PCB thickness | 2 mm |
| Chassis hole | Ø 4.8 mm |
| Chassis thickness | 0.5–2.3 mm |
| Available heights | 11.4 mm |
Natural PA6.6 polyamide PCB support, UL94-V2 fire rating. It snaps into the PCB on one side and the chassis (or a second PCB) on the other: screwless, tool-free hand installation. Release the PCB by pinching the locking tabs.
