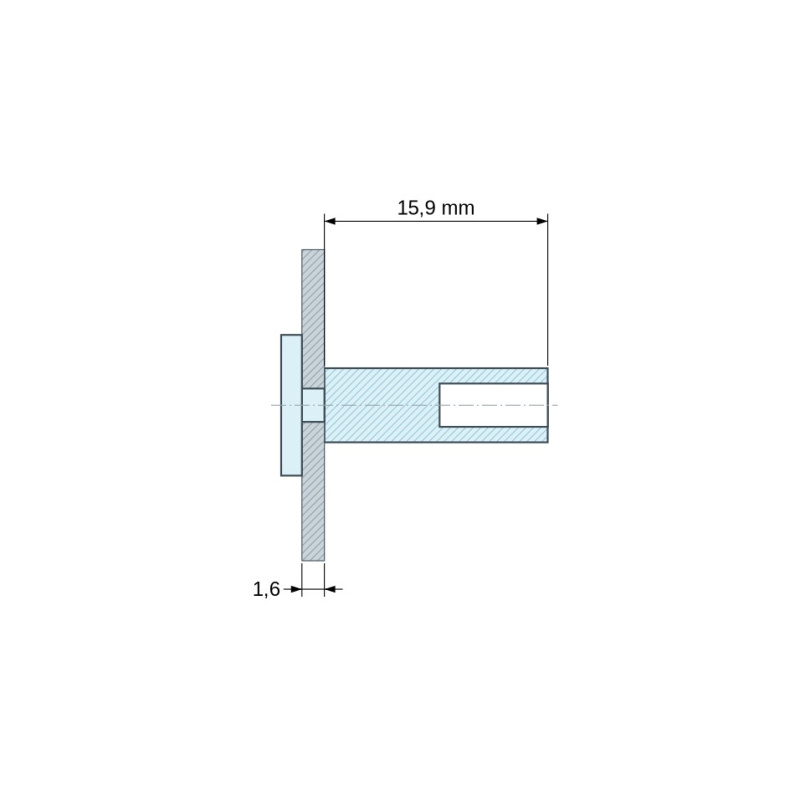

PCB support under head plate for Ø3.5 self-tapping screw, natural PA6.6, UL94-V2, 1.6 mm PCB
118,00 €
excl. VAT
Natural PA6.6 PCB support, UL94-V2. On one side, the 1.6 mm PCB is held under its head plate; on the other, a Ø3.5 self-tapping screw cuts into its smooth, unthreaded hole and secures it to the chassis. The PCB is fitted without tools onto the support after it has been screwed in.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT
Natural PA6.6 PCB support, UL94-V2. On one side, the 1.6 mm PCB is held under its head plate; on the other, a Ø3.5 self-tapping screw cuts into its smooth, unthreaded hole and secures it to the chassis. The PCB is fitted without tools onto the support after it has been screwed in.
Specifications
| Reference | SC-F048-15.9-100 |
|---|---|
| Type | PCB support held under head plate with self-tapping screw |
| Material | PA6.6 polyamide, natural |
| Fire rating | UL94-V2 |
| PCB mounting | under the head plate |
| PCB thickness | 1.6 mm |
| Screw | Ø3.5 self-tapping screw (smooth, unthreaded hole) |
| Available heights | 15.9 · 19.1 mm |
