Double-snap PCB support, PA6.6 polyamide, black, UL94-HB, PCB Ø3.2/1.6 mm / CH Ø4/1.6 mm
362,50 €
excl. VAT
Black PA6.6 polyamide PCB support, UL94-HB fire rating. It snaps into the PCB on one side and the chassis (or a second PCB) on the other: screwless, tool-free hand installation. Release the PCB by pinching the locking tabs.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT
Black PA6.6 polyamide PCB support, UL94-HB fire rating. It snaps into the PCB on one side and the chassis (or a second PCB) on the other: screwless, tool-free hand installation. Release the PCB by pinching the locking tabs.

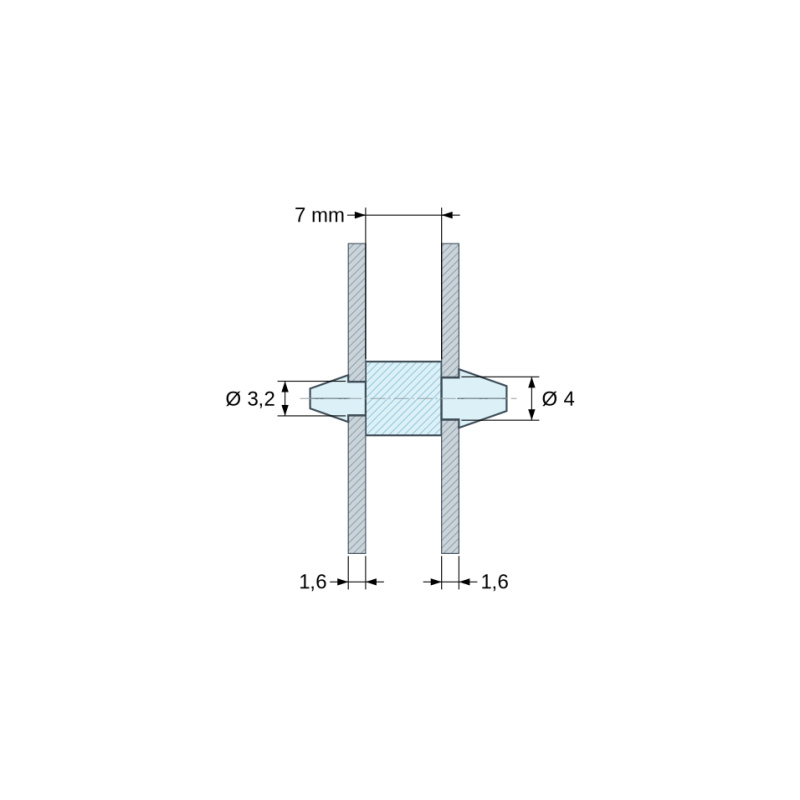

Drawing: H = height of the selected variant (from 7 to 30 mm).
Specifications
| Reference | SC-F045-7-1000 |
|---|---|
| Type | Double-snap PCB support |
| Material | PA6.6 polyamide, black |
| Fire rating | UL94-HB |
| PCB hole | Ø 3.2 mm |
| PCB thickness | 1.6 mm |
| Chassis hole | Ø 4 mm |
| Chassis thickness | 1.6 mm |
| Available heights | 7 · 9 · 10 · 12 · 16 · 18 · 30 mm |
