Double-snap PCB support, PA6.6 natural, UL94-V2, PCB hole Ø3.9 mm, PCB thickness 1.6 mm
116,00 €
excl. VAT
Natural PA6.6 polyamide PCB support, UL94-V2 fire rating. It snaps into the PCB on one side and the chassis (or a second PCB) on the other: screwless, tool-free hand installation. Release the PCB by pinching the locking tabs.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT
Natural PA6.6 polyamide PCB support, UL94-V2 fire rating. It snaps into the PCB on one side and the chassis (or a second PCB) on the other: screwless, tool-free hand installation. Release the PCB by pinching the locking tabs.

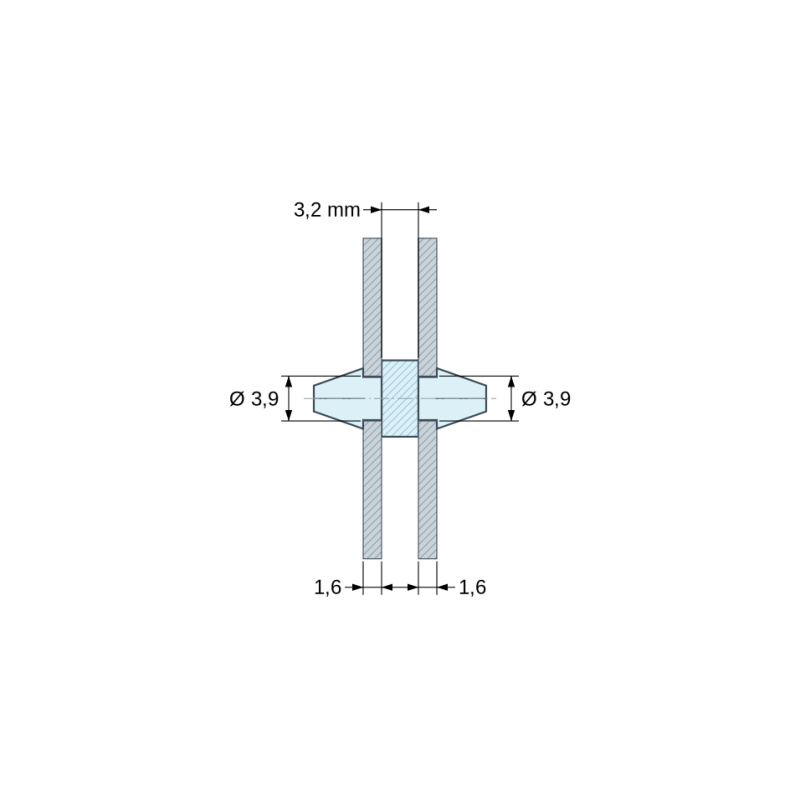

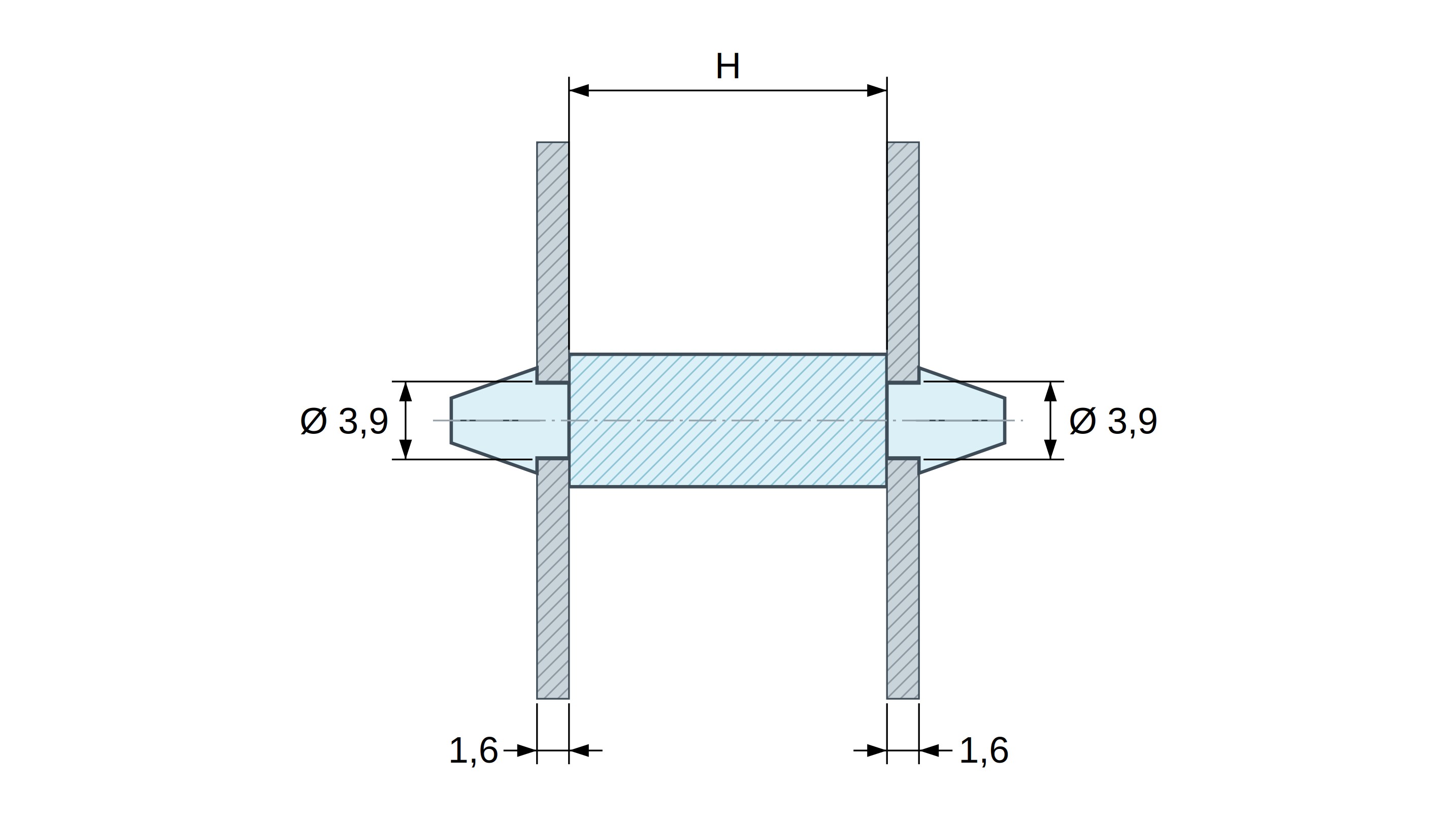

Drawing: H = height of the selected variant (from 3.2 to 38.1 mm).
Specifications
| Reference | SC-F037-3.2-100 |
|---|---|
| Type | Double-snap PCB support |
| Material | PA6.6 polyamide, natural |
| Fire rating | UL94-V2 |
| PCB hole | Ø 3.9 mm |
| PCB thickness | 1.6 mm |
| Chassis hole | Ø 3.9 mm |
| Chassis thickness | 1.6 mm |
| Available heights | 3.2 · 4.8 · 6.4 · 7.9 · 9.5 · 11.1 · 12.7 · 14.3 · 15.9 · 17.5 · 19.1 · 22.2 · 25.4 · 28.6 · 31.8 · 38.1 mm |
Natural PA6.6 polyamide PCB support, UL94-V2 fire rating. It snaps into the PCB on one side and the chassis (or a second PCB) on the other: screwless, tool-free hand installation. Release the PCB by pinching the locking tabs.
