Double-snap PCB support, PA6.6 natural, UL94-V0, PCB hole Ø3.2 mm, PCB thickness 1.6 mm
140,80 €
excl. VAT
Natural PA6.6 polyamide PCB support, UL94-V0 fire rating. It snaps into the PCB on one side and the chassis (or a second PCB) on the other: screwless, tool-free hand installation. Release the PCB by pinching the locking tabs.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT
Natural PA6.6 polyamide PCB support, UL94-V0 fire rating. It snaps into the PCB on one side and the chassis (or a second PCB) on the other: screwless, tool-free hand installation. Release the PCB by pinching the locking tabs.

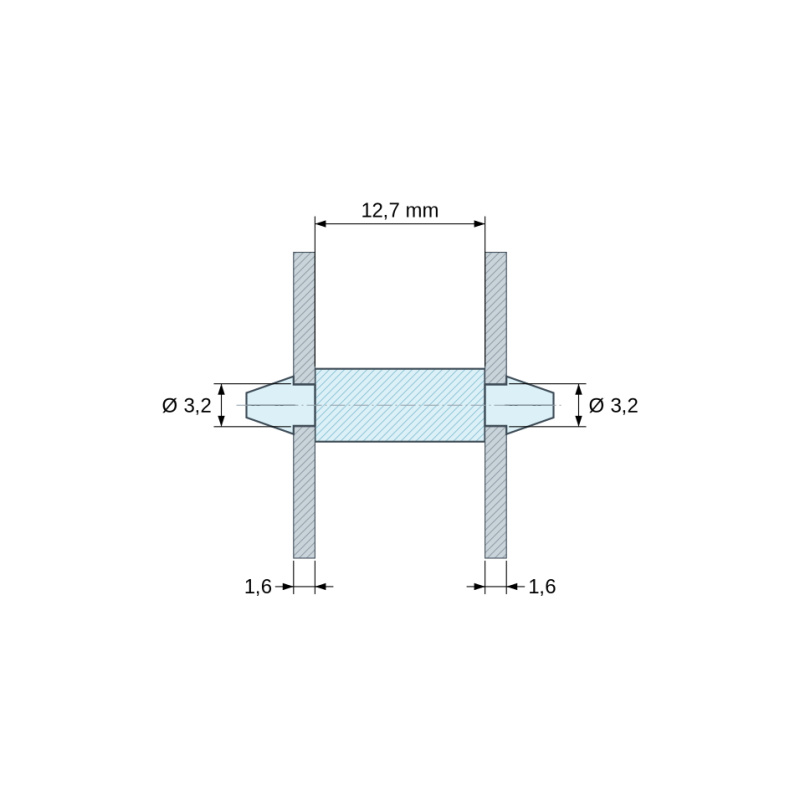

Drawing: height 12.7 mm.
Specifications
| Reference | SC-F023-12.7-100 |
|---|---|
| Type | Double-snap PCB support |
| Material | PA6.6 polyamide, natural |
| Fire rating | UL94-V0 |
| PCB hole | Ø 3.2 mm |
| PCB thickness | 1.6 mm |
| Chassis hole | Ø 3.2 mm |
| Chassis thickness | 1.6 mm |
| Available heights | 12.7 mm |
Natural PA6.6 polyamide PCB support, UL94-V0 fire rating. It snaps into the PCB on one side and the chassis (or a second PCB) on the other: screwless, tool-free hand installation. Release the PCB by pinching the locking tabs.
