Snap-in PCB support, M4 threaded stud, natural PA6.6 polyamide UL94-V0, PCB hole Ø4 mm, PCB 1.6 mm
171,20 €
excl. VAT
Natural PA6.6 polyamide PCB support, UL94-V0 fire rating. It snaps into the PCB on one side; on the other, its threaded stud passes through the chassis and is locked with a nut. The PCB is fitted without tools onto a support already fixed in place.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT
Natural PA6.6 polyamide PCB support, UL94-V0 fire rating. It snaps into the PCB on one side; on the other, its threaded stud passes through the chassis and is locked with a nut. The PCB is fitted without tools onto a support already fixed in place.

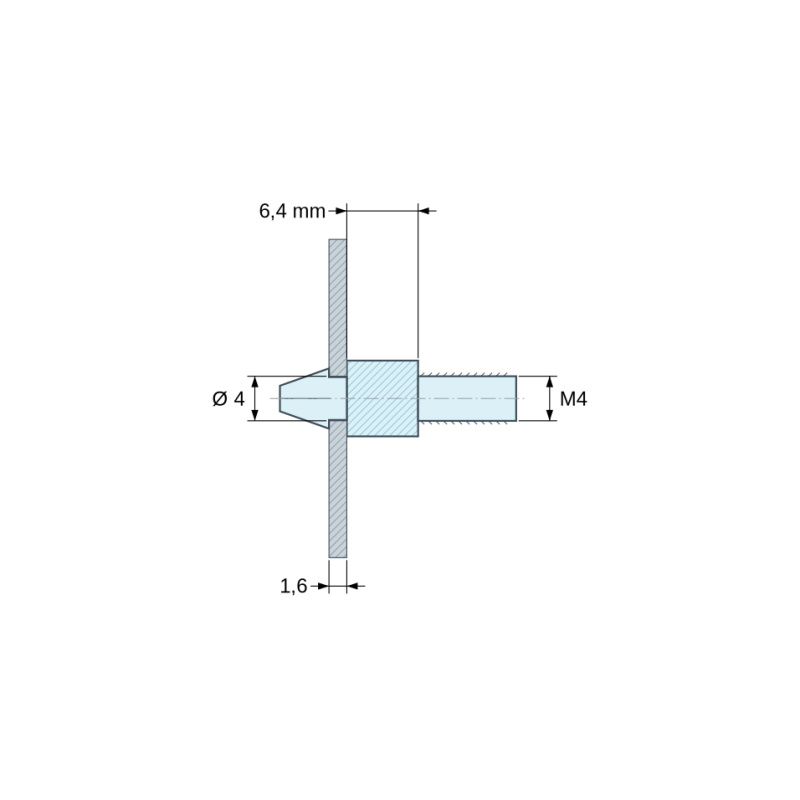

Drawing: H = height of the selected variant (6.4 to 15.9 mm).
Specifications
| Reference | SC-F009-6.4-100 |
|---|---|
| Type | Snap-in PCB support |
| Material | PA6.6 polyamide, natural |
| Fire rating | UL94-V0 |
| PCB hole | Ø 4 mm |
| PCB thickness | 1.6 mm |
| Thread | M4 |
| Available heights | 6.4 · 9.5 · 15.9 mm |
Natural PA6.6 polyamide PCB support, UL94-V0 fire rating. It snaps into the PCB on one side; on the other, its threaded stud passes through the chassis and is locked with a nut. The PCB is fitted without tools onto a support already fixed in place.
