Double-snap PCB support, natural PA6.6 polyamide UL94-V2, PCB hole Ø2.5 mm, PCB 1.6 mm
106,40 €
excl. VAT
Natural PA6.6 polyamide PCB support, UL94-V2 fire rating. It snaps into the PCB on one side and into the chassis (or a second PCB) on the other: fitted by hand, without screws or tools. The PCB is released by pinching the tabs.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT
Natural PA6.6 polyamide PCB support, UL94-V2 fire rating. It snaps into the PCB on one side and into the chassis (or a second PCB) on the other: fitted by hand, without screws or tools. The PCB is released by pinching the tabs.

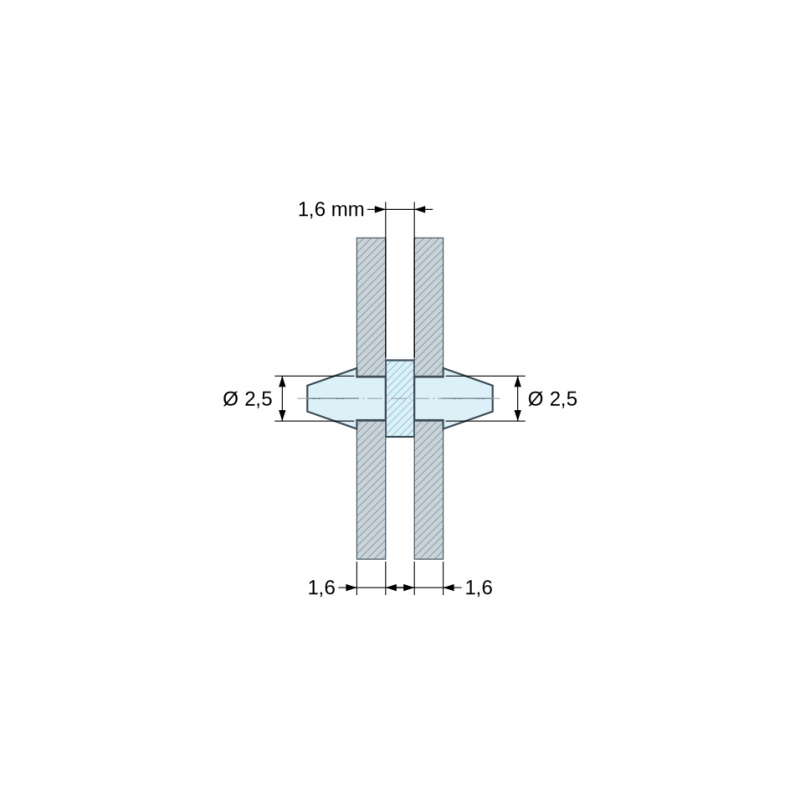

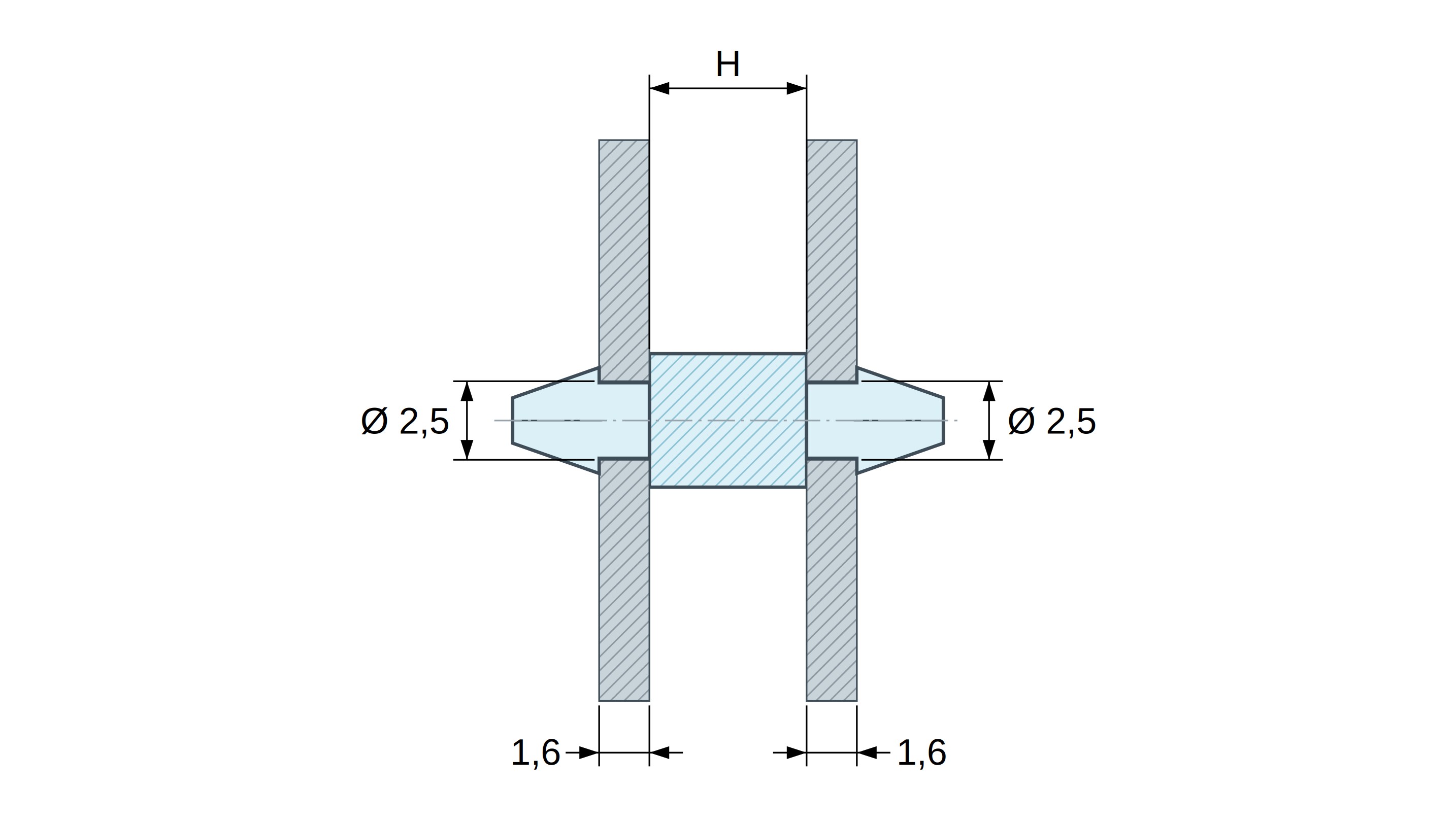

Drawing: H = height of the selected variant (1.6 to 22 mm).
Specifications
| Reference | SC-F004-1.6-100 |
|---|---|
| Type | Double-snap PCB support |
| Material | PA6.6 polyamide, natural |
| Fire rating | UL94-V2 |
| PCB hole | Ø 2.5 mm |
| PCB thickness | 1.6 mm |
| Chassis hole | Ø 2.5 mm |
| Chassis thickness | 1.6 mm |
| Available heights | 1.6 · 2 · 3 · 4 · 5 · 6 · 7 · 8 · 9 · 10 · 11 · 12 · 14 · 16 · 18 · 20 · 22 mm |
Natural PA6.6 polyamide PCB support, UL94-V2 fire rating. It snaps into the PCB on one side and into the chassis (or a second PCB) on the other: fitted by hand, without screws or tools. The PCB is released by pinching the tabs.
