Snap-in PCB support, M4 internal thread, black PA6.6 polyamide UL94-HB, PCB hole Ø4 mm, PCB 1.6 mm
64,00 €
excl. VAT
Black PA6.6 polyamide PCB support, UL94-HB fire rating. It snaps into the PCB on one side; on the other, its internal thread takes a screw that fixes it to the chassis. The PCB is fitted without tools onto a support already screwed in place.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT
Black PA6.6 polyamide PCB support, UL94-HB fire rating. It snaps into the PCB on one side; on the other, its internal thread takes a screw that fixes it to the chassis. The PCB is fitted without tools onto a support already screwed in place.

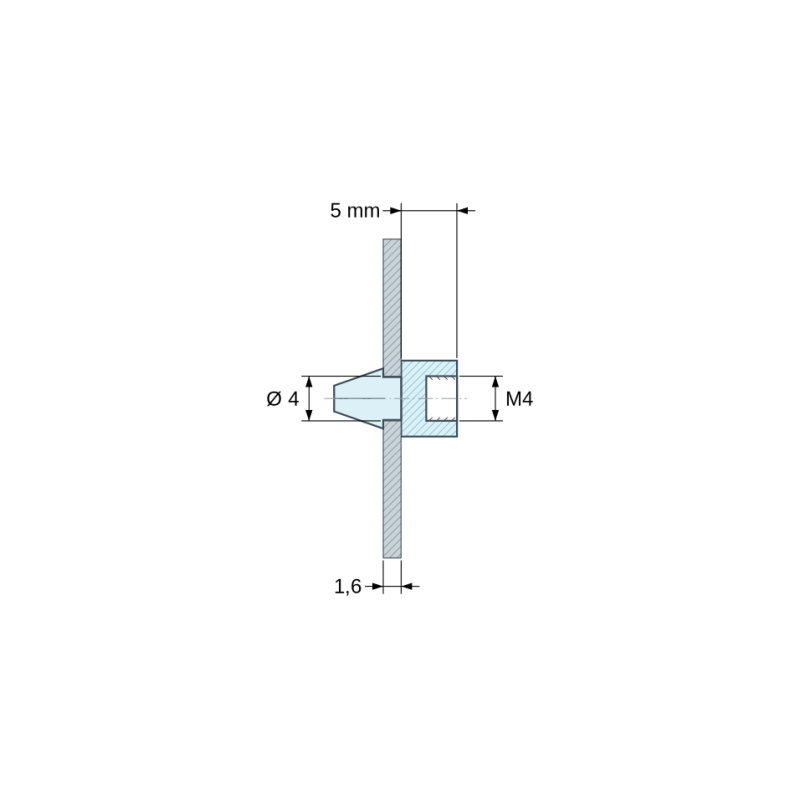

Drawing: H = height of the selected variant (5 to 70 mm).
Specifications
| Reference | SC-F003-5-100 |
|---|---|
| Type | Snap-in PCB support |
| Material | PA6.6 polyamide, black |
| Fire rating | UL94-HB |
| PCB hole | Ø 4 mm |
| PCB thickness | 1.6 mm |
| Thread | M4 |
| Available heights | 5 · 6 · 7 · 8 · 9 · 10 · 12 · 13 · 15 · 17 · 18 · 20 · 22 · 25 · 30 · 32 · 35 · 40 · 45 · 50 · 61 · 70 mm |
Black PA6.6 polyamide PCB support, UL94-HB fire rating. It snaps into the PCB on one side; on the other, its internal thread takes a screw that fixes it to the chassis. The PCB is fitted without tools onto a support already screwed in place.
