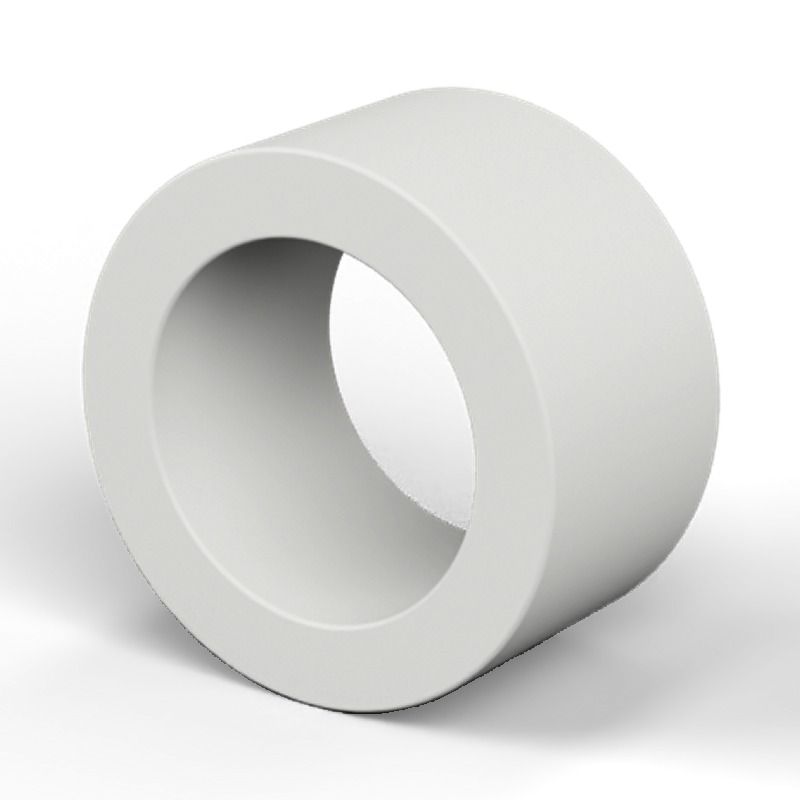

Plain white plastic glass-fibre reinforced PA6 polyamide spacer Ø8.2x12mm for screw M8
163,75 €
excl. VAT
It keeps an accurate gap between two parts fastened by an M8 screw passing through its Ø 8.2 mm bore.
Polyamide: electrically insulating, light and impact resistant.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT
Cylindrical spacer used to maintain a precise gap between two parts in a bolted assembly. Material: white plastic glass-filled polyamide.
The spacers (plain cylindrical sleeves) are made of polyamide reinforced with 25 % glass fibre: stiffer and more dimensionally stable than unfilled polyamide.
Products compliant with the RoHS II (2011/65/EU) and RoHS III (2015/863/EU) directives and with the REACH regulation (1907/2006).
Specifications
| Reference | PAR-LI-M8-D12-BL-L6.5-1000 |
|---|---|
| Type | Plain spacer |
| Material | Plastic PA6 glass-fibre reinforced, white |
| Fire rating | UL94-HB |
| For screw | M8 |
| Outer Ø | 12 mm |
| Inner Ø | 8.2 mm |
| Length | 6.5 mm |
Cylindrical spacer used to maintain a precise gap between two parts in a bolted assembly. Material : white plastic glass-filled polyamide.
