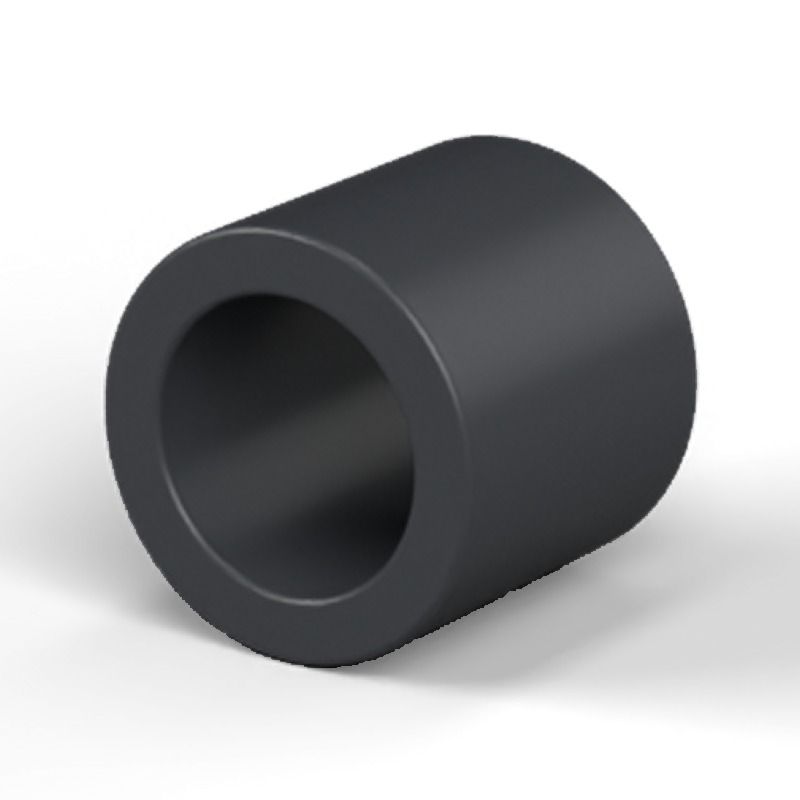

Plain plastic glass-fibre reinforced PA6 polyamide spacer Ø4.1x6mm for screw M4
66,80 €
excl. VAT
It keeps an accurate gap between two parts fastened by an M4 screw passing through its Ø 4.1 mm bore.
Polyamide: electrically insulating, light and impact resistant.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT
Cylindrical spacer used to maintain a precise gap between two parts in a bolted assembly. Material: plastic glass-filled polyamide.
The spacers (plain cylindrical sleeves) are made of polyamide reinforced with 25 % glass fibre: stiffer and more dimensionally stable than unfilled polyamide.
Products compliant with the RoHS II (2011/65/EU) and RoHS III (2015/863/EU) directives and with the REACH regulation (1907/2006).
Specifications
| Reference | PAR-LI-M4-I4.1-D6-NR-L5.5-100 |
|---|---|
| Type | Plain spacer |
| Material | Plastic PA6 glass-fibre reinforced, black |
| Fire rating | UL94-HB |
| For screw | M4 |
| Outer Ø | 6 mm |
| Inner Ø | 4.1 mm |
| Length | 5.5 mm |
Cylindrical spacer used to maintain a precise gap between two parts in a bolted assembly. Material : plastic glass-filled polyamide.
