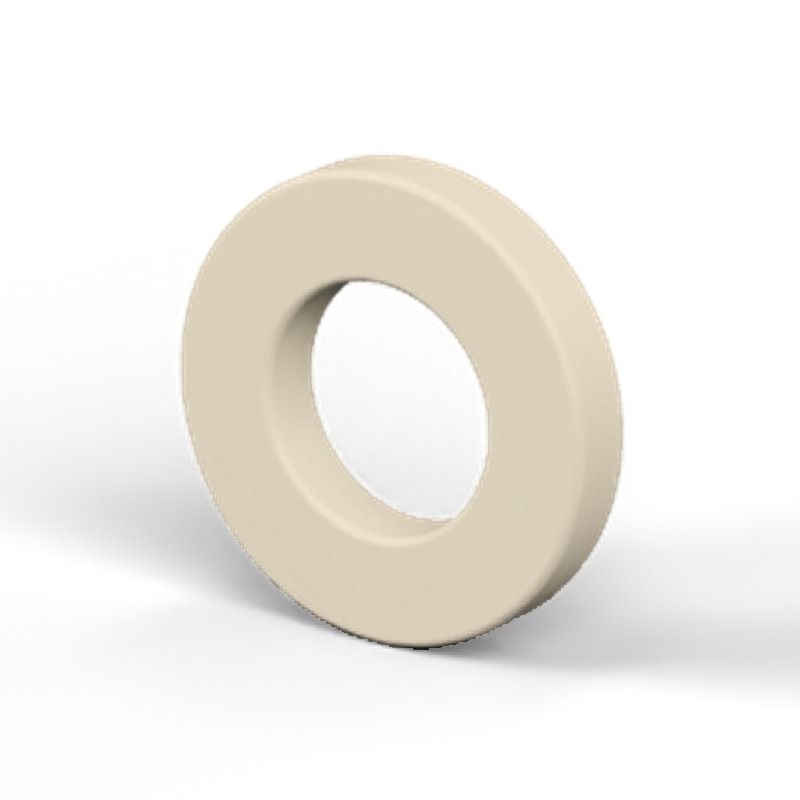

Plain natural plastic polyamide PA6.6 spacer Ø3.2x6mm for screw M3
27,60 €
excl. VAT
It keeps an accurate gap between two parts fastened by an M3 screw passing through its Ø 3.2 mm bore.
Polyamide: electrically insulating, light and impact resistant.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT
Cylindrical spacer used to maintain a precise gap between two parts in a bolted assembly. Material: natural plastic polyamide PA6.6.
The spacers (plain cylindrical sleeves) are made of PA6.6 polyamide, stiffer and more heat-resistant than PA6.
Products compliant with the RoHS II (2011/65/EU) and RoHS III (2015/863/EU) directives and with the REACH regulation (1907/2006).
Specifications
| Reference | P66-LI-M3-I3.2-D6-NA-L1-100 |
|---|---|
| Type | Plain spacer |
| Material | Plastic PA6.6, natural |
| Fire rating | UL94-V2 |
| For screw | M3 |
| Outer Ø | 6 mm |
| Inner Ø | 3.2 mm |
| Length | 1 mm |
Cylindrical spacer used to maintain a precise gap between two parts in a bolted assembly. Material : natural plastic polyamide PA6.6.
