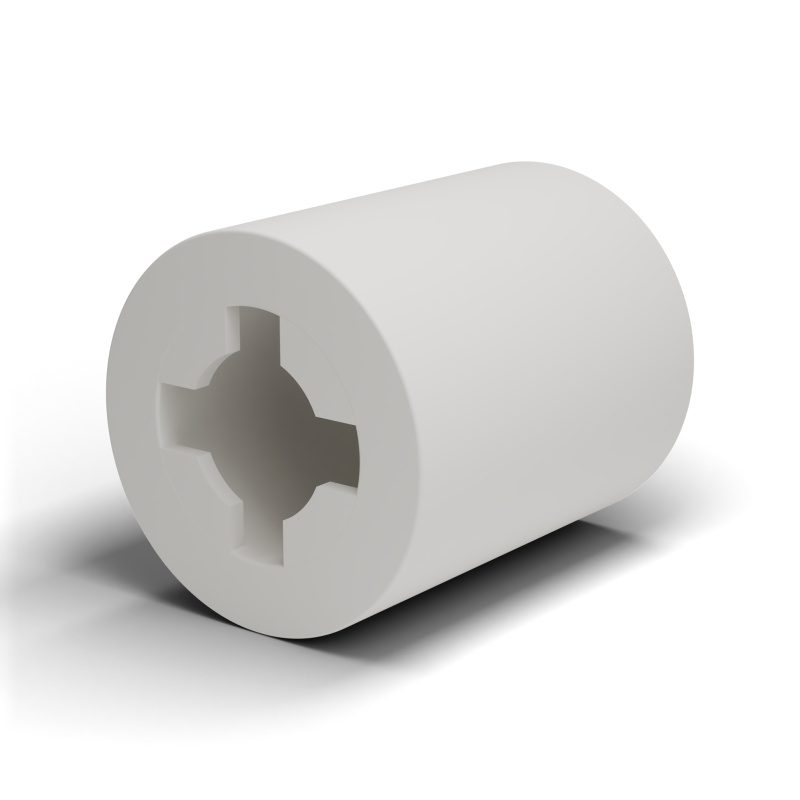

Self-retaining smooth spacer, natural PA6.6, UL94-V2, Ø5 × 7.9 mm, for M5 screw
60,40 €
excl. VAT
Self-retaining smooth spacer for an M5 screw: it is designed to remain in position during assembly, thanks to four internal tabs at one end of the bore (Ø3.3 mm clearance between the tabs). Natural PA6.6 polyamide, UL94-V2.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT
Self-retaining smooth spacer for an M5 screw: it is designed to remain in position during assembly, thanks to four internal tabs at one end of the bore (Ø3.3 mm clearance between the tabs). Natural PA6.6 polyamide, UL94-V2.
Specifications
| Reference | DA-F013-9.5-100 |
|---|---|
| Type | Self-retaining smooth spacer |
| Material | Natural PA6.6 polyamide |
| Fire rating | UL94-V2 |
| Inner diameter | Ø 5 mm |
| Outer diameter | Ø 7.9 mm |
| Retention | 4 internal tabs at one end (Ø3.3 mm clearance) |
| For screw | M5 |
| Length | 9.5 mm |
Self-retaining smooth spacer for an M5 screw: it is designed to remain in position during assembly, thanks to four internal tabs at one end of the bore (Ø3.3 mm clearance between the tabs). Natural PA6.6 polyamide, UL94-V2.
