Insulating flanged bushing Ø3,1x6mm, high shoulder Ø3,5mm, black glass-fiber-reinforced PA6.6 polyamide UL94-HB
15,00 €
excl. VAT
Insulating flanged bushing (high shoulder): the Ø3.5 mm shoulder fits into the panel hole and insulates the screw, which passes through the Ø3.1 mm bore; the Ø6 mm flange insulates the screw head or nut. The specified height is the overall height, including the flange. Material: black glass-fiber-reinforced PA6.6 polyamide. Fire rating: UL94-HB.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT
Insulating flanged bushing (high shoulder): the Ø3.5 mm shoulder fits into the panel hole and insulates the screw, which passes through the Ø3.1 mm bore; the Ø6 mm flange insulates the screw head or nut. The specified height is the overall height, including the flange. The flange is 1 mm thick. Material: black glass-fiber-reinforced PA6.6 polyamide. Fire rating: UL94-HB.

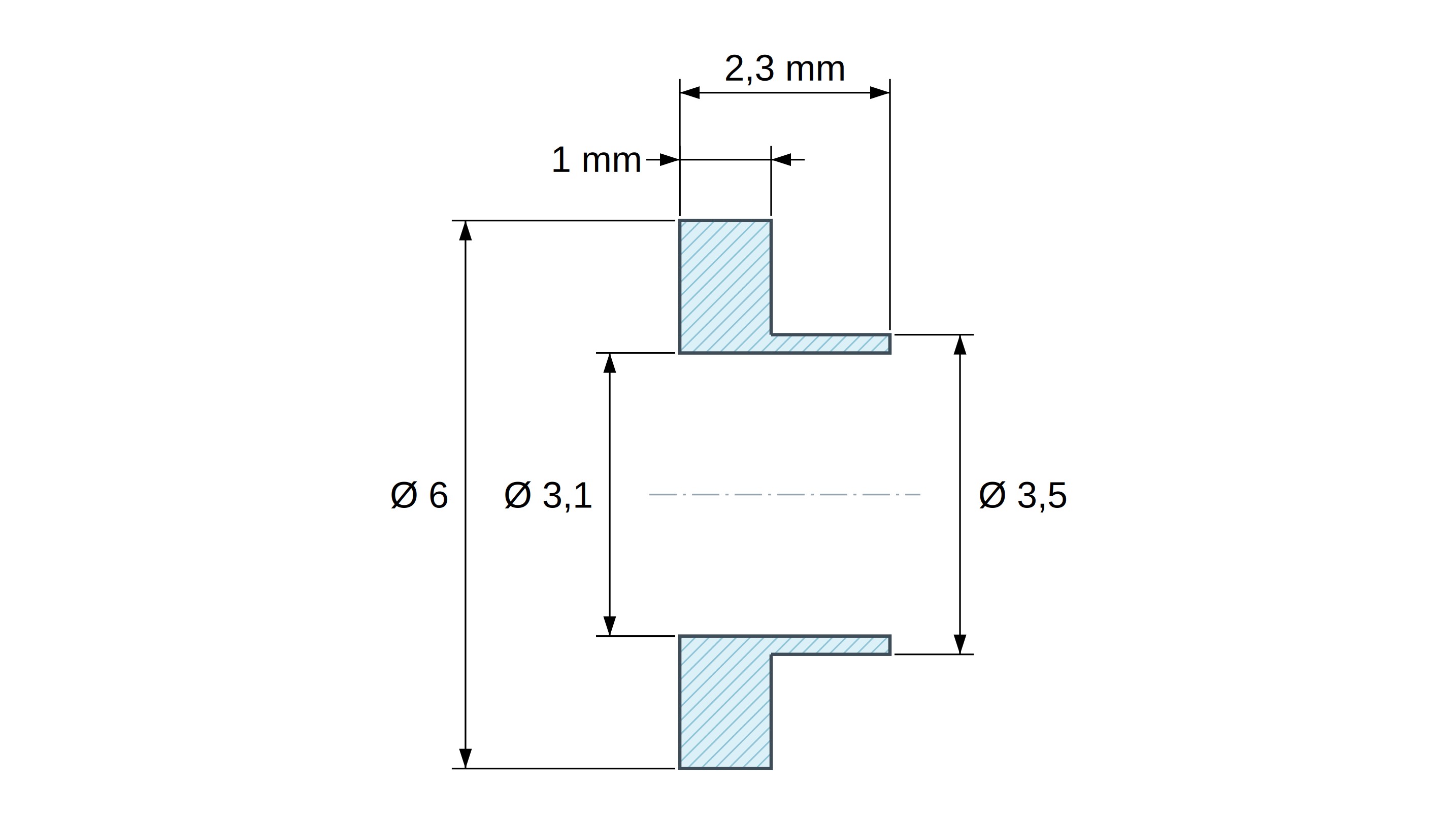

Photo and drawing: height 2.3 mm.
Specifications
| Reference | DI-F074-2.3-100 |
|---|---|
| Type | Insulating flanged bushing, high shoulder |
| Material | Black PA6.6 polyamide, 25 % glass fiber reinforced |
| Fire rating | UL94-HB |
| Bore diameter | Ø 3.1 mm |
| Flange diameter | Ø 6 mm |
| Shoulder diameter | Ø 3.5 mm |
| Flange thickness | 1 mm |
| Available heights (overall, including flange) | 2.3 mm |
Insulating flanged bushing (high shoulder): the Ø3.5 mm shoulder fits into the panel hole and insulates the screw, which passes through the Ø3.1 mm bore; the Ø6 mm flange insulates the screw head or nut. The specified height is the overall height, including the flange. Material: black glass-fiber-reinforced PA6.6 polyamide. Fire rating: UL94-HB.
