Insulating flanged bushing Ø12,5x21mm, high shoulder Ø14,5mm, black glass-fiber-reinforced PA6.6 polyamide UL94-HB
62,40 €
excl. VAT
Insulating flanged bushing (high shoulder): the Ø14.5 mm shoulder fits into the panel hole and insulates the screw, which passes through the Ø12.5 mm bore; the Ø21 mm flange insulates the screw head or nut. The specified height is the overall height, including the flange. Material: black glass-fiber-reinforced PA6.6 polyamide. Fire rating: UL94-HB.
Secure paymentCard, transfer, PayPal
DeliveryEstimated delivery: 5 to 10 working days
Shipping from 10.90 € excl. VAT
Insulating flanged bushing (high shoulder): the Ø14.5 mm shoulder fits into the panel hole and insulates the screw, which passes through the Ø12.5 mm bore; the Ø21 mm flange insulates the screw head or nut. The specified height is the overall height, including the flange. The flange is 3 mm thick. Material: black glass-fiber-reinforced PA6.6 polyamide. Fire rating: UL94-HB.

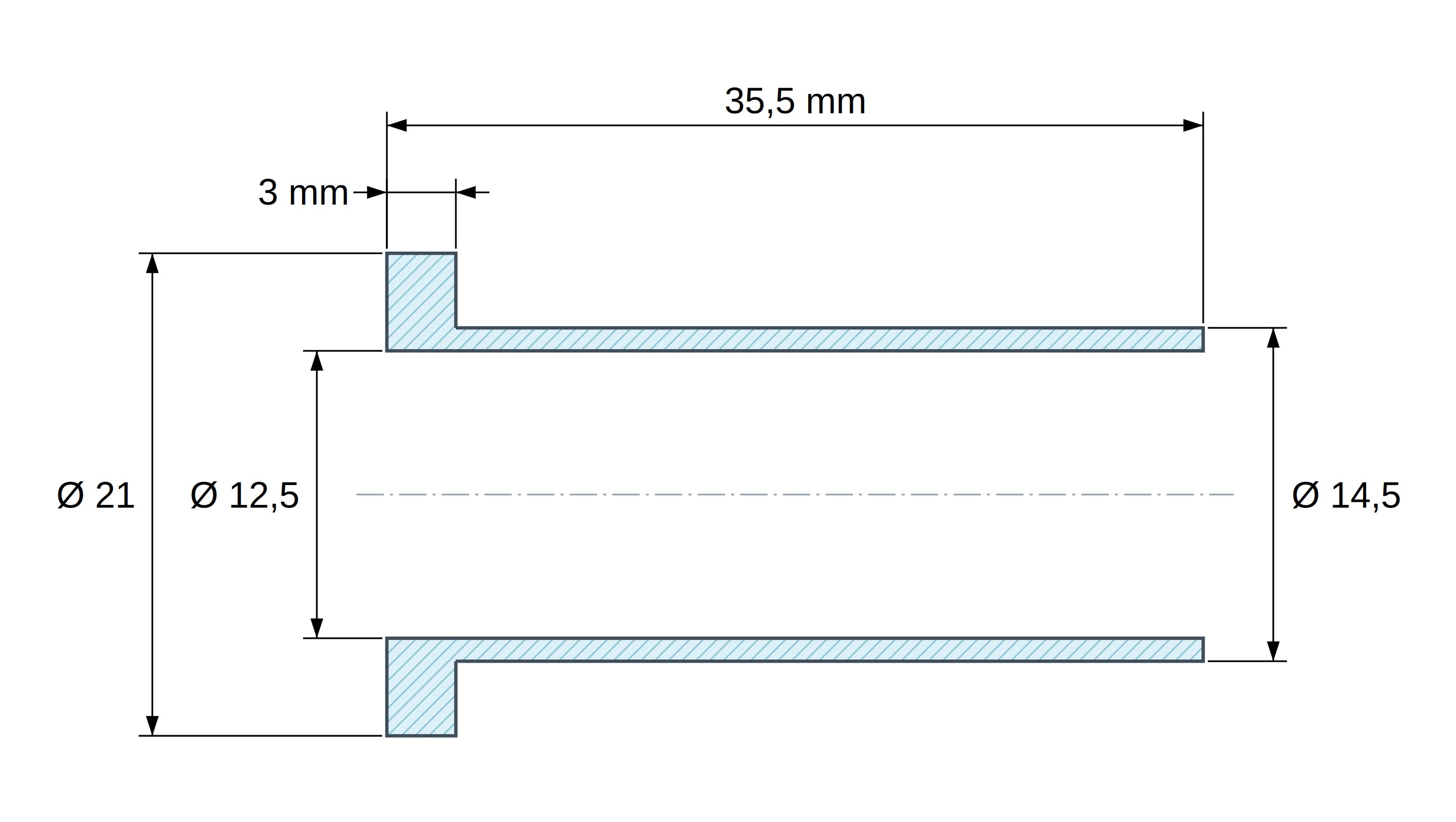

Photo and drawing: height 35.5 mm.
Specifications
| Reference | DI-F073-35.5-100 |
|---|---|
| Type | Insulating flanged bushing, high shoulder |
| Material | Black PA6.6 polyamide, 25 % glass fiber reinforced |
| Fire rating | UL94-HB |
| Bore diameter | Ø 12.5 mm |
| Flange diameter | Ø 21 mm |
| Shoulder diameter | Ø 14.5 mm |
| Flange thickness | 3 mm |
| Available heights (overall, including flange) | 35.5 mm |
Insulating flanged bushing (high shoulder): the Ø14.5 mm shoulder fits into the panel hole and insulates the screw, which passes through the Ø12.5 mm bore; the Ø21 mm flange insulates the screw head or nut. The specified height is the overall height, including the flange. Material: black glass-fiber-reinforced PA6.6 polyamide. Fire rating: UL94-HB.
